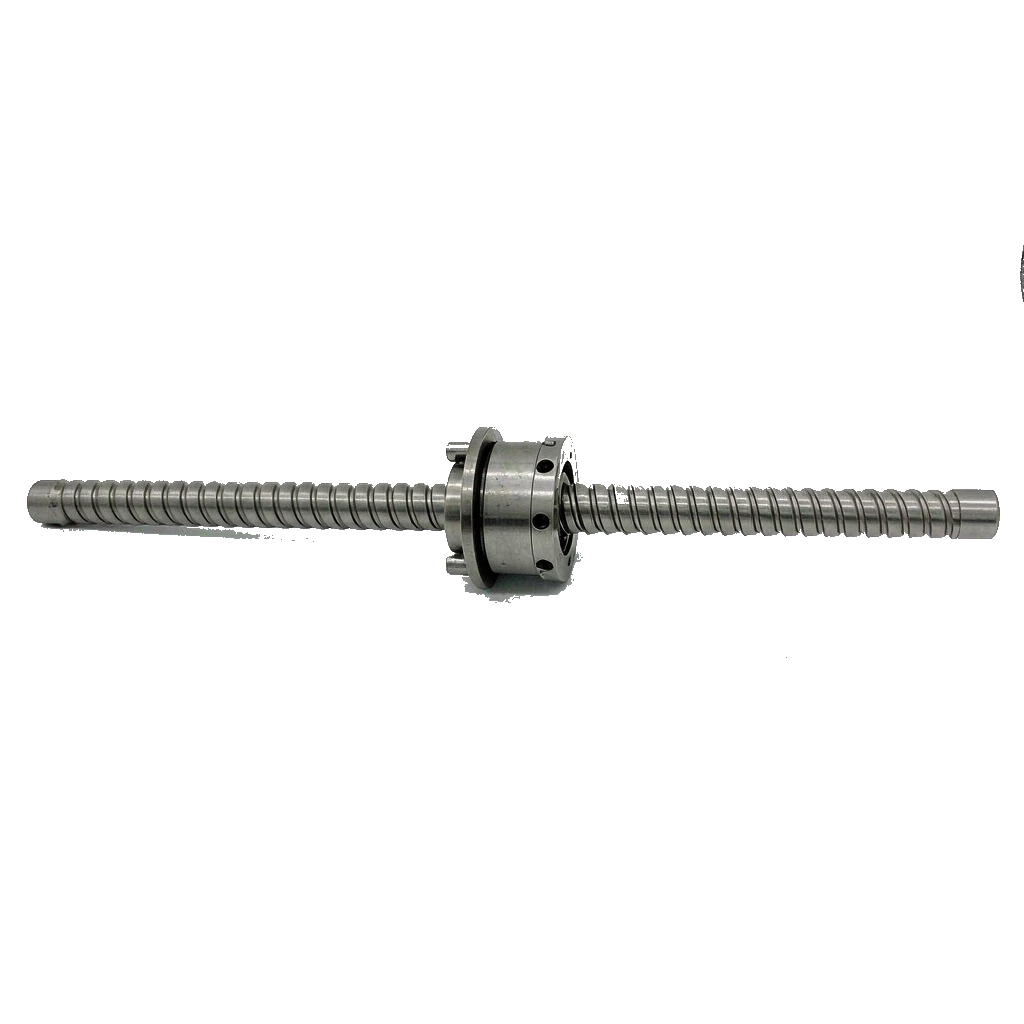

Ball Screw
Diameter 12/16/20/25/32/40/50 mm. Rotary-to-linear conversion, precision positioning, lifting mechanisms, CNC machines and electric cylinders.
These are RFQ-ready reference SKUs. Final revision, compliance documents and commercial terms are confirmed per order.
Technical specification
| series | SFU1605/1610/2005/2505/2510/3205/3210 |
|---|---|
| brands | HIWIN, TBI, THK, PMI, NSK, local brands |
Product facts
The following points are stated so this page can be cited accurately.
- Specifications shown here are taken from the current JINXI product catalogue (JX-TRN-002) and are confirmed at order.
- The minimum order quantity (20 pcs) and lead time (7–15 working days) are typical catalogue values; final MOQ and delivery are confirmed per quotation.
- No reference drawing is published for this SKU; geometry and tolerances are confirmed per order.
- Compliance documents such as material certificates, test reports and declarations of conformity are prepared and confirmed per order.
- This page does not state a price, stock level, country of origin, certification status or EU responsible person; those are confirmed with the quotation.
Frequently asked questions
What are the typical MOQ and lead time for Ball Screw?
The JINXI catalogue lists 20 pcs and 7–15 working days for JX-TRN-002. These are typical values; the final MOQ and delivery date are confirmed when we quote your order.
Are reference drawings available for Ball Screw?
No reference drawing is published for this SKU; geometry and tolerances are confirmed per order.
Which standards and compliance documents apply to Ball Screw?
Compliance documents such as material certificates, test reports and declarations of conformity are prepared and confirmed per order. Tell us which documents your project or market requires when you request a quote.
How do I request a quote and what are the commercial terms?
Use the “Request a quote” button on this page with your required quantity and destination. Default Incoterms are FCA Foshan or DAP named place. Payment is T/T, 30% deposit / 70% before shipment on a first order, with L/C possible after a track record.
What material and finish does Ball Screw use, and where are the full dimensions?
Per manufacturer catalogue, with a As supplied finish. Full dimensions are listed in the technical specification table above; the complete specification is confirmed at order.
